CL35235635S

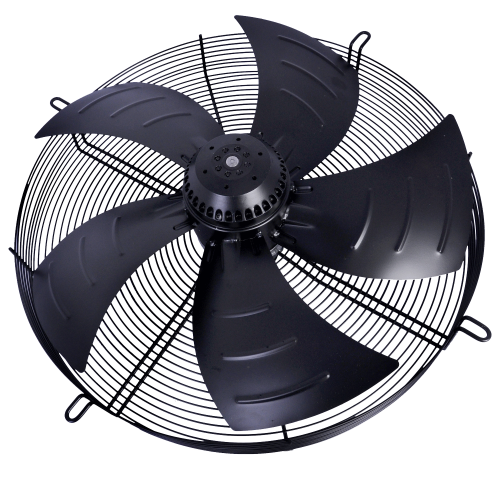

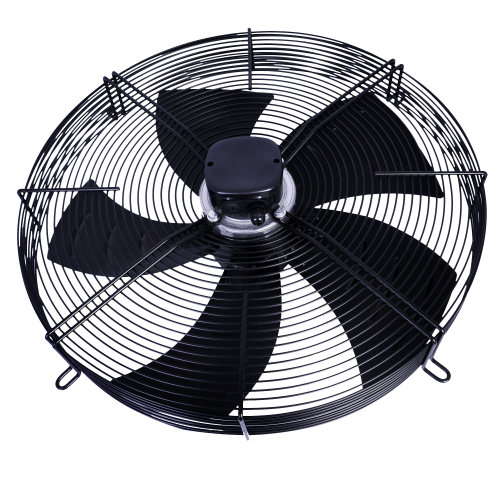

Axial Fan Motor 350mm, 220v/380v, 50/60Hz 5 Leaf

Model:

350mm

Rated Voltage:

220v/380v

Rate Frequency:

50/60Hz

Rated Power:

130/150W

Rated Current:

0.56/0.67A

Rated Speed:

1380/1520r/min

Rotation

SUCTION

Additional Information

Type Voltage
V
Frequency
Hz
Input Power
W
Current
A
Speed r/min +- 5% Air Volume m3/h Noise Level dBA Capacitor uF/VDE
CL35235635S 220v 50/60Hz 130/150W 0.56/067A 1380/1520r/min - - /
CL35235635S 380v 50/60Hz 130/150W 0.34/0.40A 1380/1520r/min - - /
